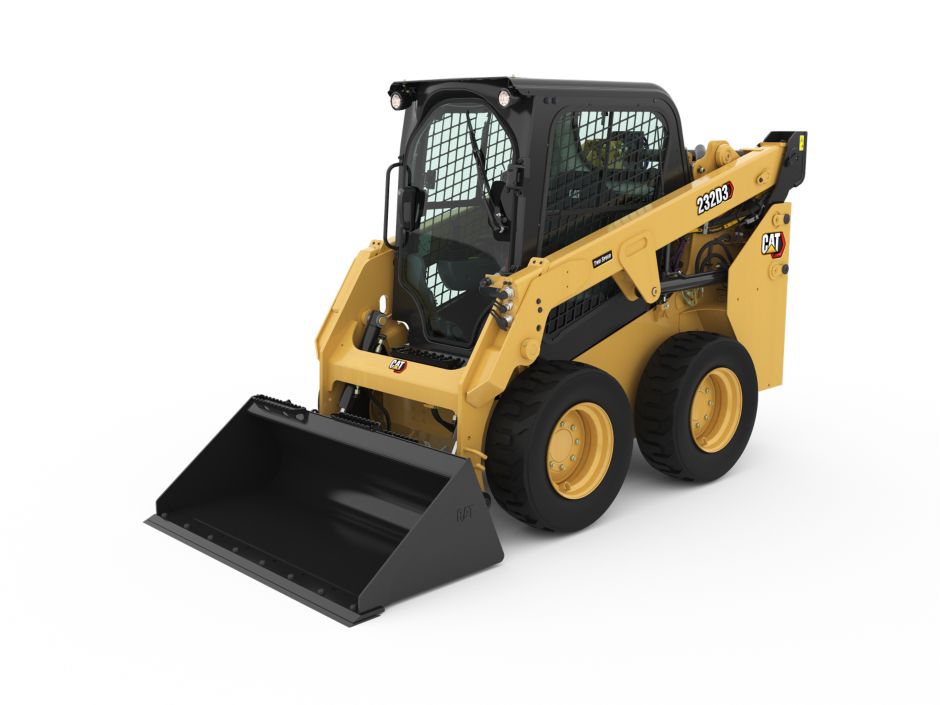

The Cat® 232D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.
The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with…
High performance power train provides maximum performance and production capability through the Electronic Torque Management syste…
Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual directio…
Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement respons…
Specification | Value |
Gross Power - SAE J1995:2014 | 44.9 kW |
Net Power - SAE 1349 | 44 kW |
Displacement | 2.2 l |
Stroke | 100 mm |
Bore | 84 mm |
Net Flywheel Power | 44 kW |
Peak Torque - 1,500 rpm - SAE J1995 | 183 N·m |
Net Power - ISO 9249 | 44.4 kW |
Engine Model | Cat C2.2† |
Note | †Engine meeting Brazil Mar-1 emission standards emits equivalent to U.S. EPA Tier 4 Interim. |
Specification | Value |
Rated Operating Capacity | 865 kg |
Tipping Load | 1.725 kg |
Breakout Force - Tilt Cylinder | 1.782 kg |
Rated Operating Capacity with Optional Counterweight | 910 kg |
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
Specification | Value |
Operating Weight | 2.955 kg |
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
Specification | Value |
Wheel Base | 1.054 mm |
Height - Top of Cab | 2.029 mm |
Vehicle Width over Tires | 1.497 mm |
Ground Clearance | 170 mm |
Departure Angle | 27.9° |
Maximum Dump Angle | 47.4° |
Reach - Maximum Lift/Dump | 653 mm |
Turning Radius from Center - Machine Rear | 1.513 mm |
Length - Without Bucket | 2.523 mm |
Maximum Reach - With Arms Parallel to Ground | 1.249 mm |
Bucket Pin Height - Carry Position | 214 mm |
Length - With Bucket on Ground | 3.233 mm |
Bucket Pin Reach - Maximum Lift | 224 mm |
Rack Back Angle - Maximum Height | 88.2° |
Clearance at Maximum Lift and Dump | 2.254 mm |
Bucket Pin Height - Maximum Lift | 3.001 mm |
Bumper Overhang - Behind Rear Axle | 894 mm |
Turning Radius from Center - Coupler | 1.102 mm |
Maximum Overall Height | 3.832 mm |
Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
Turning Radius from Center - Bucket | 1.976 mm |
Specification | Value |
Hydraulic Flow - Standard - Loader Hydraulic Pressure | 23.000 kPa |
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow | 99 L/min |
Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 38 kW |
Hydraulic Flow - Standard - Loader Hydraulic Flow | 69 L/min |
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure | 23.000 kPa |
Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 26.5 kW |
Specification | Value |
ROPS | ISO 3471:2008 |
FOPS | ISO 3449:2005 Level I |
Specification | Value |
Travel Speed - Forward or Reverse - Two Speed Option | 17.8 km/h |
Travel Speed - Forward or Reverse - One Speed | 12.3 km/h |
Specification | Value |
Cooling System | 12 l |
Engine Crankcase | 10 l |
Fuel Tank | 57 l |
Hydraulic System | 45 l |
Hydraulic Tank | 34 l |
Chain Box - Each Side | 7 l |
Specification | Value |
Inside Cab* | 83 dB(A) |
Outside Cab** | 101 dB(A) |
Note (2) | **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
Note (1) | *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
Specification | Value |
Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
Learn more information about the Cat 232D3 Skid Steer Loader.
