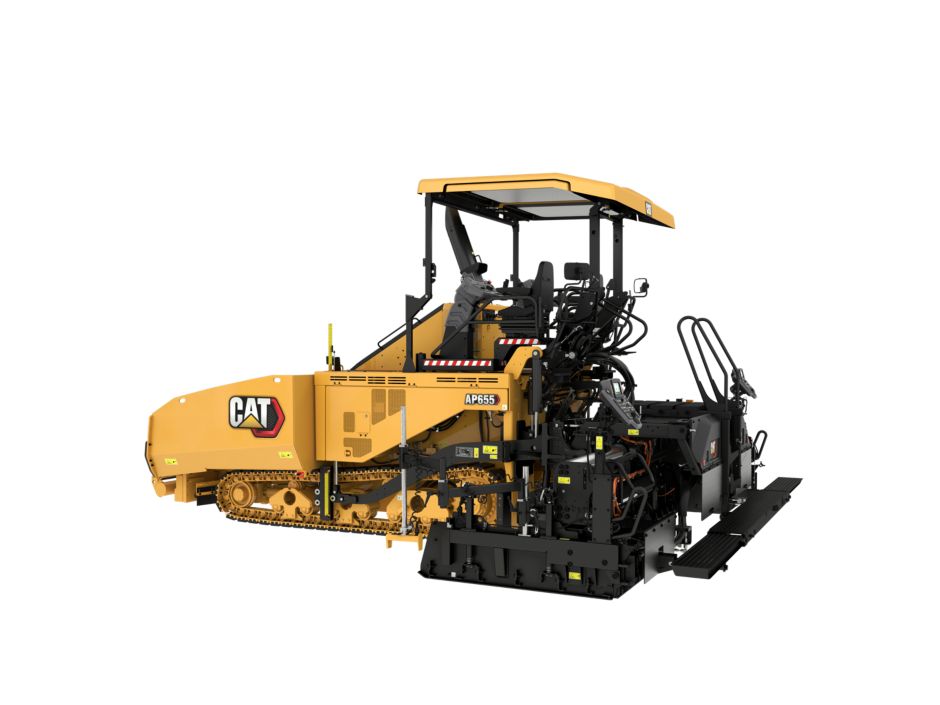

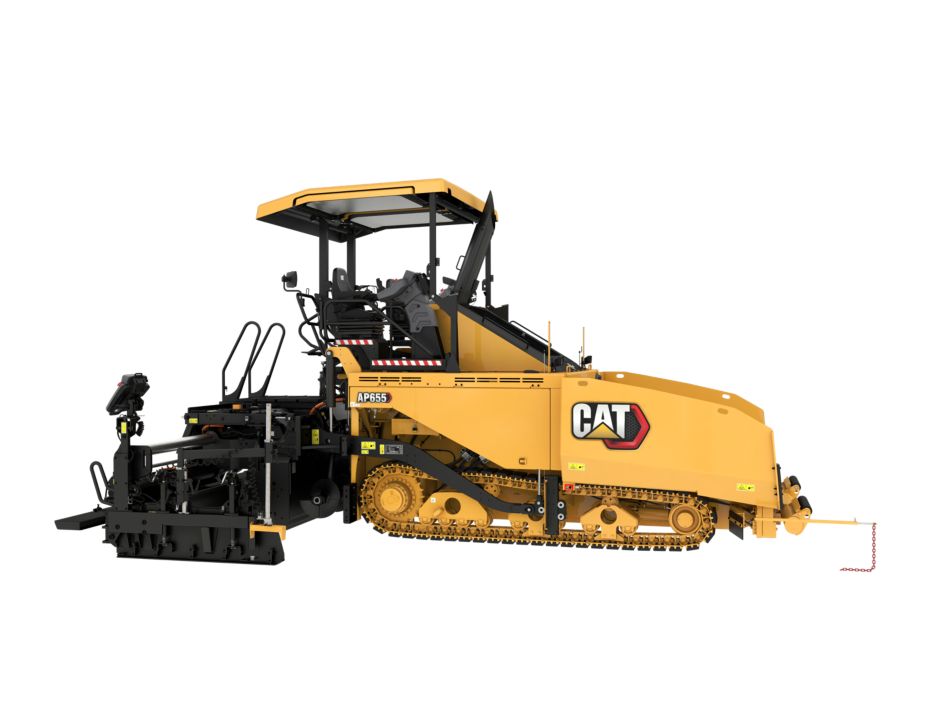

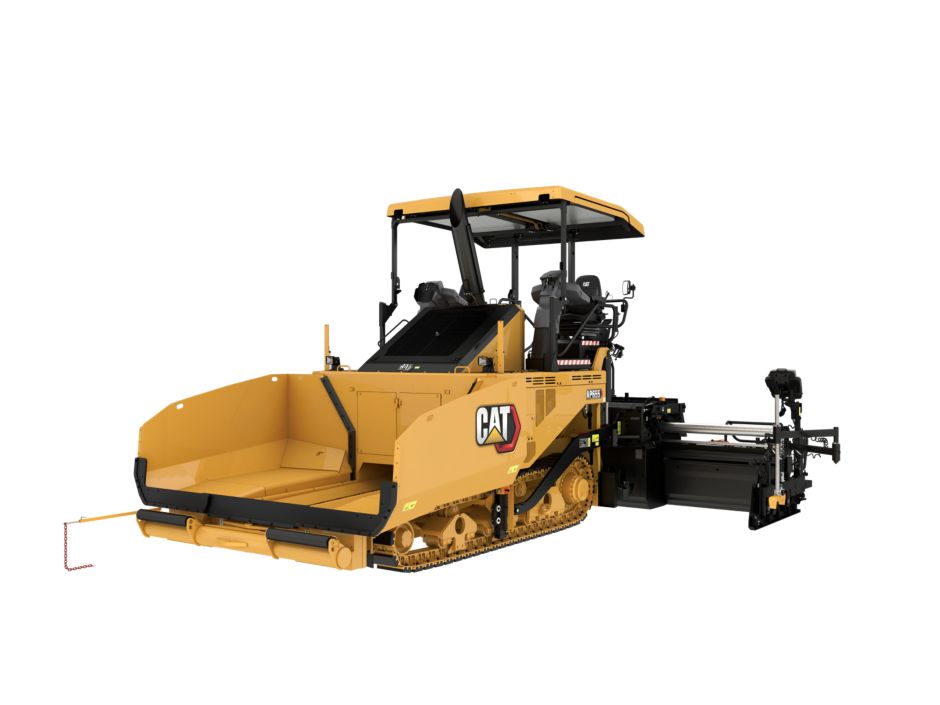

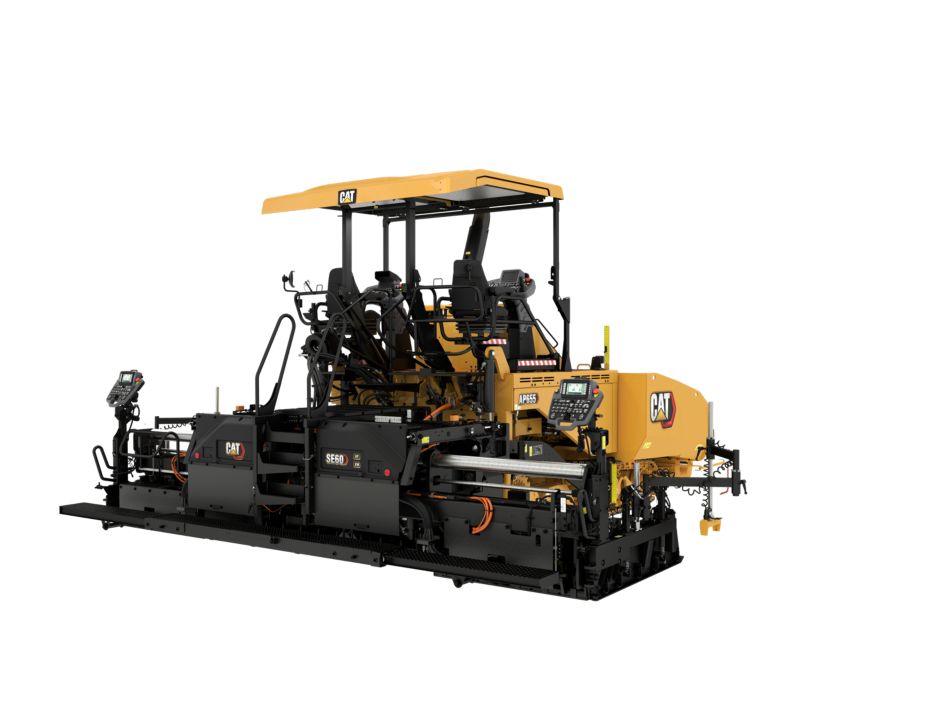

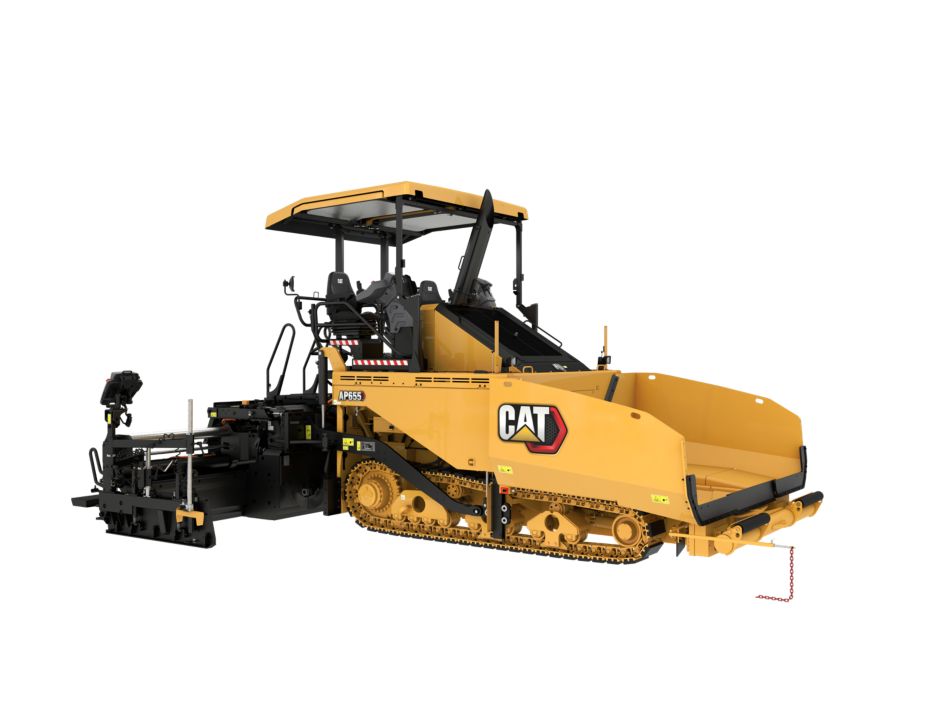

The AP655 steel track asphalt paver delivers a high-return on investment with its fast-heating screed system, durable components, and easy to use technology. A variety of screed choices provide versatility and high-quality results on interstates, highways, airports, and parking lots.
Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that de…
Pave Start Assistant saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat tempera…
Versatile tamper-bar screed designs deliver excellent ride, density, and mat texture while providing superior adjustment Tow…
Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and commu…
Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working env…
Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions…
Make timely, fact-based decisions to maximize efficiency, improveproductivity, and lower owning and operating costs Easily t…
Paver and screed service and repair kits include the parts necessary to complete specific repairs Cat genuine parts are manu…
Specification | Value |
Paving Range with SE50 VT | 2.55 m - 8.0 m (8' 4" - 26' 4") |
Paving Range with SE60 VT XW | 3.0 m - 10.0 m (10' - 33') |
Operating Length | 6.8 m |
Operating Width | 3.3 m |
Overall Height | 3.9 m |
Transport Length | 6.6 m |
Transport Width | 2.55 m |
Transport Height | 3 m |
Specification | Value |
Engine Power (1) | 151 kW |
Engine Model (1) | Cat C7.1 |
Specification | Value |
Maximum Travel Speed | 14.5 km/h |
Maximum Paving Speed | 25 m/min |
Inside Turn Radius | 0.5 m |
Maximum Throughput Capacity | 1.300 tonnes/hr |
Specification | Value |
Operating weight with SE50 VT | 19.530 kg |
Operating weight with SE60 VT XW | 21.052 kg |
Shipping Weight - Paver Only | 15.754 kg |
Specification | Value |
Fuel Tank Capacity | 278 l |
Cooling System | 37 l |
Hydraulic Oil Tank | 219 l |
Washdown Tank | 30 l |
Learn more information about the Cat AP655 Steel Track Paver.
